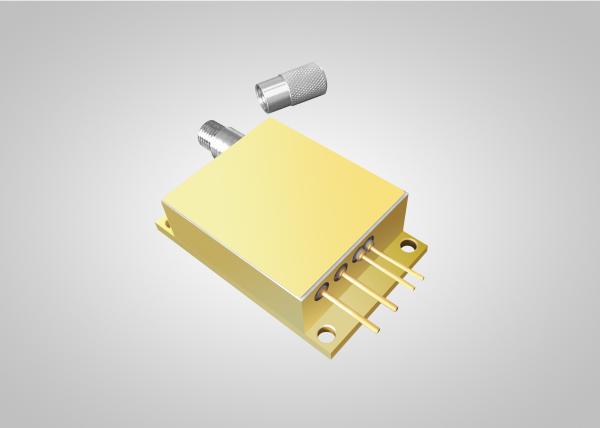

808nm 30W Fiber Detachable Diode Laser

Product Categories

BWT Beijing Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : China

Brand Name : BWT

Certification : ISO9001

Model Number : K808DAECN-30.00W

MOQ : 1 Piece/Pieces

Delivery Time : 4-8weeks

Payment Terms : T/T

Supply Ability : 100,000/year

Product Name : high power laser module

Output Power : 30W

Wavelength : 808nm

Fiber bundle diameter : 400µm

Numerical aperture : 0.22N.A

Application : Solid-state laser pumping

Contact Now

808nm 30W 0.22N.A. High Brightness Pump High Power Diode Laser Module

Features:

808nm wavelength

30W output power

400μm fiber core diameter

0.22 N.A.

Applications:

Solid-state laser pumping

Medical Use

Material processing

Specifications(25℃)		Symbol	Unit	K808DAECN-30.00W
Specifications(25℃)		Symbol	Unit	Minimum	Typical	Maximum
Optical Data	CW-Output Power	Po	W	30	-	-
	Threshold current	Ith	A	-	1.8
	Operating current	Iop	A	-	10	11
	Operating voltage	Vop	V	-	-	8
	Reverse Voltage	Vre	V	-	10	-
	Slope Efficiency	η	W/A	-	4	-
	Electrical-to-Optical Efficiency	PE	%	-	48	-
	Center wavelength	ʎc	nm	805	-	811
	Spectral width(FWHM)	δλ	nm	-	3	-
	Wavelength Shift with Temperature	-	nm/℃	-	0.3	-
	Wavelength Shift with Current	-	nm/A	-	1	-
Fiber Data	Buffer diameter	Dbuf	µm	-	730	-
	Cladding diameter	Dclad	µm	-	440	-
	Core diameter	Dcore	µm	-	400	-
	Numeric aperture	NA	-	-	0.22	-
	Connector	-	-	-	SMA905
Thermistor	-	Rt	(K Ω)/β(25℃)	-	10±3%/3477	-
Others	ESD	Vesd	V		-	500
	Storage Temperature	Tstg	℃	-20	-	70
	Lead Soldering Temp	Tls	℃	-	-	260
	Lead Soldering Time	t	sec	-	-	10
	Operating case temperature	Top	℃	15	-	35
	Relative Humidity	RH	%	15	-	75
