660nm 2W Fiber Coupled Diode Laser Red Laser

Brand Name : BWT

Model Number : K660DA2FN-2.000WN0N

Certification : ISO9001

Place of Origin : China

MOQ : 1 Piece/Pieces

Payment Terms : T/T

Supply Ability : 100,000/year

Delivery Time : 4-8weeks

Product Name : 660nm-2W

Output Power : 2W

Wavelength : 660nm

Fiber bundle diameter : 105µm

Numerical aperture : 0.22NA

Application : Medical testing

Contact Now

660nm 2W Fiber Coupled Diode Laser

Features:

660nm wavelength

2W output power

105µm/0.22NA

Applications:

Medical testing

Indicator light

The BWT Red Laser has the advantages of small size, high brightness, and high wavelength accuracy. The high-precision wavelength and high brightness spot of red laser achieves high absorption of substances in medical applications, making the detection results more accurate.

Specifications(25℃)		Symbol	Unit	K660DA2FN-2.000WN0N
Specifications(25℃)		Symbol	Unit	Minimum	Typical	Maximum
Optical Data	CW-Output Power	Po	W	2	-	-
	Center Wavelength	λc	nm	660±3
	Wavelength Shift with Temperature	△λ/△T	nm/℃	-	0.2	-
Electrical Data	Electrocal-to-Optical Efficiency	PE	%	-	25	-
	Threshold Curent	lth	A	-	0.5	-
	Operating Curent	lop	A	-	2	2.2
	Operating Voltage	Vop	V	-	4.2	5
	Slioe Efficiency	η	W/A	-	1.3	-
Fiber Data	Core diameter	Dcore	µm	-	105	-
	Numerical Aperture	NA	-	-	0.22	-
	Fiber Connector	-	-	FC/PC/SMA905
Others	ESD	Vesd	V		-	500
	Storage Temperature	Tstg	℃	-20	-	70
	Lead Soldering Temp	Tls	℃	-	-	260
	Lead Soldering Time	t	sec	-	-	10
	Operating case temperature	Top	℃	15	-	35
	Relative Humidity	RH	%	15	-	75

Product Tags:

660nm 2W fiber coupled diode laser

Red fiber coupled diode laser

Red laser diode to fiber coupling

Buy cheap 660nm 2W Fiber Coupled Diode Laser Red Laser product

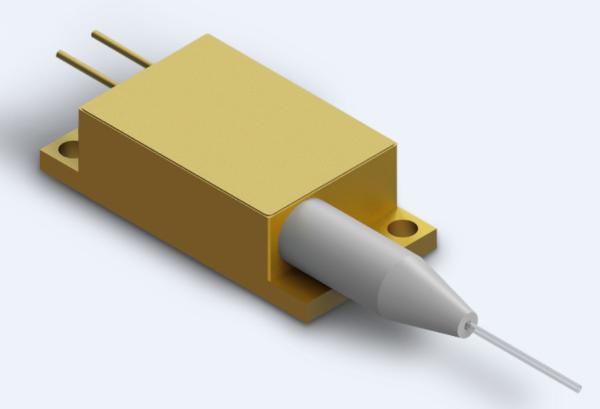

660nm 2W Fiber Coupled Diode Laser Red Laser Images
